Brand: FOXWELL
Product Dimensions: 8.66″L x 3.15″W x 6.69″H
Operating System: functionf {var _np=window.P._namespace”DetailPageProductOverviewTemplatesJava”;if_np.guardFatal{_np.guardFatalf_np;}else{f_np;}}functionP { P.when’A’.executefunctionA{ A.on’a:truncate:po-attribute-truncate-2:updated’, functiondata { var isTruncated = !data.truncateInstance.getIfTextFits; var seeMoreElement = document.getElementById’po-attribute-see-more-id-2′; ifseeMoreElement { seeMoreElement.style.display = isTruncated ? ” : ‘none’; } } };}; [Choice Of Millions People] [Recommended by Major Websites/Mechanic] Windows_XP/7/8/10 to update, Mac and IOS system not supported.[Choice Of Millions People] [Recommended by Major Websites/Mechanic] Windows_XP/7/8/10 to update, Mac and IOS… See more
Display resolution: 320×240
EU Spare Part Availability Duration: 2 Years
Power Source Plug and Play, Full OBDII Functions, Live Data Logging, Data Print, One Key I/M Readiness, DTC HelpPlug and Play, Full OBDII Functions, Live Data Logging, Data Pr… See more:
: Power Source Plug and Play, Full OBDII Functions, Live Data Logging, Data Print, One Key I/M Readiness, DTC HelpPlug and Play, Full OBDII Functions, Live Data Logging, Data Pr… See more
: Screen Size 2.8 Inches
This is a modal window.

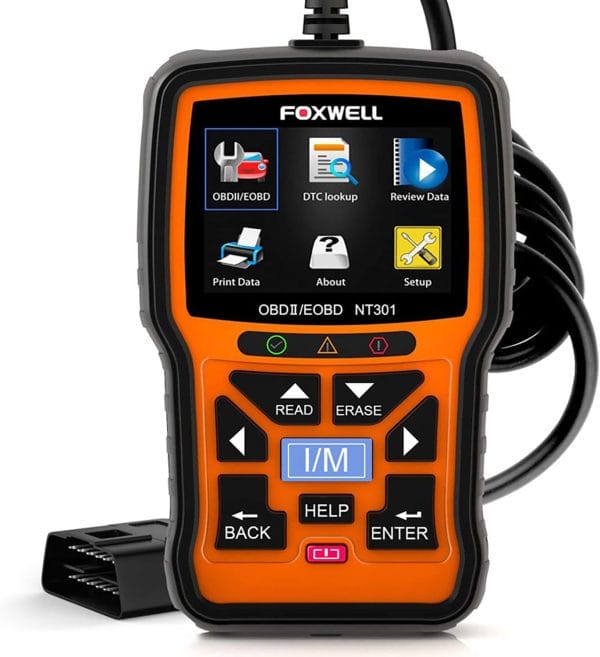

People always spend hundreds of even thousands of dollars on their vehicles just because the engine light was on. In fact, this NT301 obd2 scanner could help you to determine the cause of the engine light, and tell you what’s wrong with your car engine, and if it is necessary to be sent to workshop.
This is a modal window.

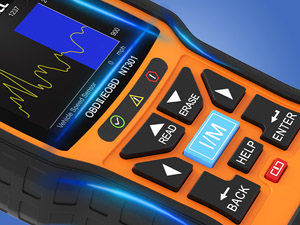

This obd2 scanner diagnostic tool allows us to see real-time data in a graphical format, observe trends and changes in data, and check if parameters like temperature and speed are within normal ranges. This helps us monitor the vehicle’s health, diagnose issues, make performance adjustments, and gain a better understanding of how the vehicle is performing.
This odb2 scanner nt301 can read freeze frame data which shows engine conditions such as fuel trim, fuel pressure, engine coolant temp, etc. Then records PIDs for later use to help you diagnose intermittent driving performance problems which can not be determined by any other methods.
This is a modal window.
Foxwell NT301 obd scanner diagnostic tool has a built-in DTC look up library, problem repair help for codes detected, verified fixes for common problems. This obd ii scanner can be automatically displayed after reading, press “HELP” button with DTC guide for possible causes if codes show the small “?” icon.
This is a modal window.
This obd scanner diagnostic tool is designed for fast use so you can get the results you want in the shortest time with one-click hot keys for reading/clearing DTCs. To know if you are ready for a smog check, press I/M buttonrubber for 3 seconds. Red-Yellow-Green LEDs and build-in speaker indicate the readiness status for smog check.
This is a modal window.
This code reader enables you determine the problem yourself, or let you know exactly what needs replacement in case you need. If you are unable to determine the problem, you can print out the diagnostic data and send the data to your mechanic for help.
This is a modal window.
The NT301 major advantage is its full support for all 10 OBD2 service modes. This includes live data, freeze frame snapshot data, e-missions related trouble codes, clearing/resetting stored test data and DTCs, access to O2 sensor and onboard monitoring examination results, etc.
It can also help save you money and offer added features to streamline your diagnosis. These enhanced functions encompass Led indicators, data logging, DTC assistance, VIN retrieval, and data printing. They aid in identifying underlying issues and enhance the convenience of your diagnostic process.

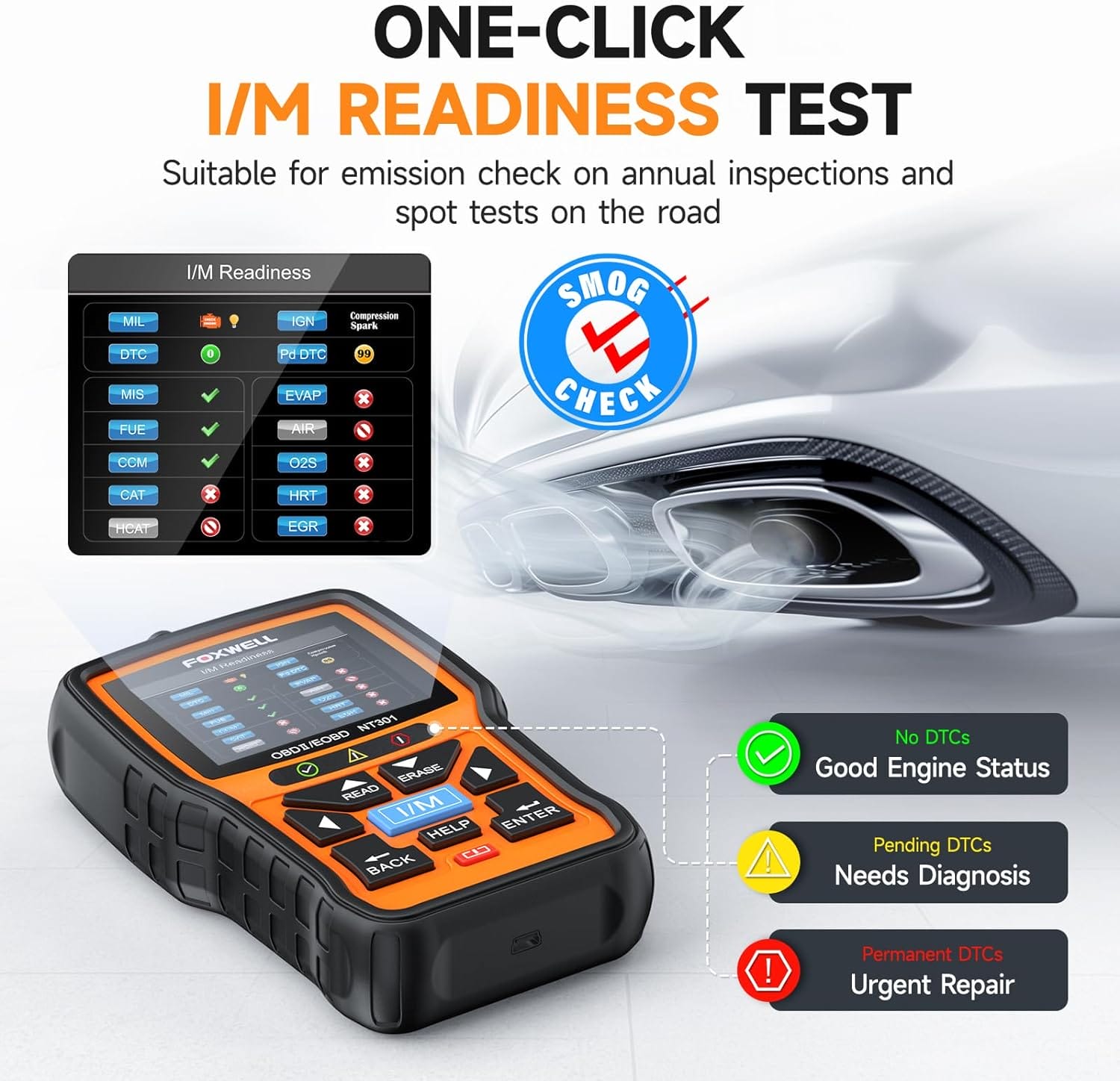

The I/M Readiness is a vital tool to evaluate a vehicle’s compliance with state e-missions programs before inspection, with hotkey for swift checks.
NT301 shines among competitors due to its integrated body, user-friendly design, compact size, organized keypad, intuitive menu, 2.8″ color screen.

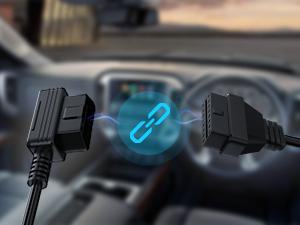

It is designed to extend the OBD2 cable on your vehicle’s OBDII protocol, reducing distance limitations(need extra purchase the cable)

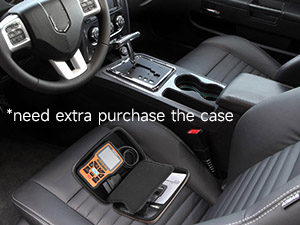

With the protective carrying case for the NT301, preventing damage whether you store it in a trunk, toolbox, or garage.(need extra purchase the case)
Will this automotive scanner diagnostic tool work on my vehicle?
What live data can be read by this check engine light diagnostic tool?
Can NT301 vehicle diagnostic scanner be upgraded on MAC system?
Will scanner automotriz read ABS/ airbag codes?
Why does the screen of NT301 scanner not light up after I connect to the car?
Will this automotive scanner diagnostic tool work on my vehicle?
NT301 car scanner obd2 supports most cars, SUVs, light trucks and 12V diesels around the world with OBD II Protocol since 1996.
What live data can be read by this check engine light diagnostic tool?
How much data can be read depends on the vehicle, there are over 40 graphing live data Can be download a whole list, to list some: FUELSYSfuel system status, LOAD_PCTCalculated load value,ECTEngine Coolant Temperature, etc.
Can NT301 vehicle diagnostic scanner be upgraded on MAC system?
Sorry, the foxwell nt301 obd2 scanner can be updated on Windows systems onlyincluding windows 10, please download NTWonder and update already the latest version, not recommended before use.
Will scanner automotriz read ABS/ airbag codes?
Sorry, NT301 obdii scanner is able to read and clear check engine information which is part of OBDII system, but it cannot work on non-OBDII systemsABS/airbag/oil service light,ect..
Why does the screen of NT301 scanner not light up after I connect to the car?
When the vehicle OBD diagnosis port is not powered, the screen may not bright due to the scanner lack of power supply. You can change a vehicle to test. If another car can be detected normally, it may be the reason mentioned above.
